What is SFP Port ?

In the sections below, we unpack what an SFP port is and how it works, outline common SFP types and use cases, explain why SFP ports matter for flexibility and lifecycle economics, clarify their purpose as a media-agnostic boundary in your design, and compare SFP with SFP+, XFP, SFP28, and QSFP28 so you can choose confidently.

What is an SFP Port ?

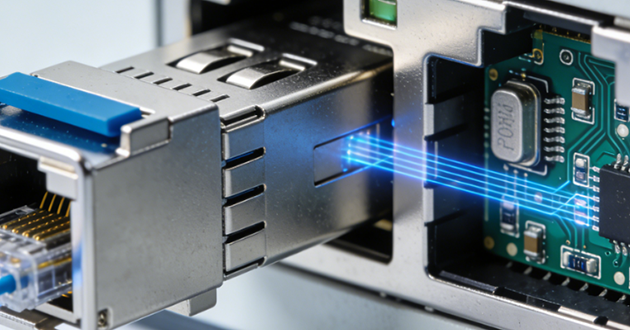

An SFP port (Small Form-factor Pluggable port) is a modular host interface that lets switches, routers, firewalls, and servers terminate high-speed links flexibly. Rather than a simple “fiber jack,” it’s the mechanical cage and electrical connector on the PCB that mates with a removable SFP-family transceiver. By decoupling the physical medium from the switching silicon, the same hardware platform can support different link types without redesign.

After a module is inserted, the port brings up high-speed SerDes lanes for data and a low-speed I²C management bus for identification and health telemetry. Over this control channel, the host reads the module’s EEPROM—vendor, wavelength, capabilities, power class—then sets signal conditioning and enforces limits defined by common MSAs. Because the interface is hot-swappable, operators can insert or replace modules on a live chassis; the link retrains without a reboot, which is a major operational win in dense, always-on environments.

As a result, an SFP port does not fix the medium or reach. It functions as a media-independent slot that adopts the behavior of the installed transceiver—short-reach multimode, long-haul single-mode, BiDi over a single strand, CWDM/DWDM for wavelength-multiplexed backbones, or even copper via RJ-45 SFPs. Meanwhile, the line rate (e.g., 1G for SFP, 10G for SFP+) is set by the host ASIC/PHY and firmware rather than the cage’s shape; many devices expose identical cages but gate speeds or optics via qualification lists. With proper EMI shielding, ESD protection, and robust latch mechanics, the port delivers signal integrity and serviceability at scale—serving as a practical hardware abstraction boundary between the network silicon and the physical plant.

How Does an SFP Port Work?

An SFP port acts as a modular bridge between a device’s internal circuitry and the outside transmission medium—fiber or copper. It lets high-speed electrical signals be converted, carried, and received through a compact, removable SFP transceiver. Because the transceiver defines the standard, wavelength, and reach, a single port can serve many roles simply by swapping modules. In practice, this modularity lets operators tune links for distance or media without changing the base hardware, improving scalability and day-to-day flexibility.

Electrical-to-Optical Conversion

When you insert an SFP module, the host’s network ASIC/PHY drives serialized data over the port’s high-speed differential lanes. Inside the module, a laser diode—typically a VCSEL for multimode fiber or a DFB laser for single-mode—turns those electrical signals into precisely modulated light. That light exits the transceiver through an LC or SC connector and travels down the fiber to the remote end.

Different optics are optimized for different reaches: 850 nm for short-range SX, 1310 nm for mid-range LX, and 1550 nm for long-haul or DWDM systems. By moving from electrons to photons, the link achieves high throughput with low attenuation over distances that copper cannot practically support.

Optical-to-Electrical Conversion

At the far end, another SFP reverses the process. A photodiode detects the incoming light and converts it back to an electrical waveform. On-module amplification and equalization clean up the signal before it reaches the host’s receiver. The result is full-duplex communication—transmit in one direction, receive in the other—on the same link. With BiDi optics, both directions can even share a single fiber by using different wavelengths for TX and RX, conserving fiber without sacrificing bandwidth.

Signal Management and Diagnostics

SFP technology goes beyond raw conversion by exposing real-time health data via the I²C management interface. Digital diagnostics (DDM/DOM) report transmit/receive optical power, laser bias current, module temperature, and supply voltage. This telemetry supports proactive operations: teams can spot margin loss, temperature drift, or aging optics early and remedy issues before they impact service.

Hot-Swappable Design

SFP ports are built to be hot-swappable under Multi-Source Agreement (MSA) specifications. Modules can be inserted or removed while the chassis stays powered; the host identifies the optic, applies the right parameters, and brings the link up—no reboot required. That capability is essential in high-availability settings such as data centers, telecom networks, and enterprise cores, where engineers routinely replace modules, adjust link distances, or upgrade optics without taking systems offline.

What Types of SFP Ports Are There?

SFP ports are highly versatile, and their capabilities depend on the type of SFP transceiver you use.

Here are the main types based on distance and media:

Want a quick, visual rundown of each option and when to use it? Check out this guide for examples, distances, and selection tips: What are the different types of SFP ports?

Why is the SFP Port Important?

Flexibility

An SFP port delivers real versatility by accepting swappable transceivers for many link types. Whether the run is fiber or copper, short campus hops or metro distances, single-strand BiDi or CWDM/DWDM, one slot can adapt in seconds. This modularity decouples hardware from cabling, so teams can change media and reach without redesigning the platform.

Scalability

With an SFP port, growth is incremental. To add bandwidth or another uplink, simply populate an empty cage with the right module and connect the cable—no chassis replacement or forklift upgrade. This pay-as-you-grow model keeps capacity aligned with demand and streamlines rollouts.

Hot-Swappability

Because SFP optics are hot-insertable, modules can be added or replaced while systems stay online. The host identifies the new transceiver, brings the link up, and traffic continues. This shortens maintenance windows, speeds repairs, and supports strict uptime targets in mission-critical networks.

Space Efficiency

The compact footprint of an SFP port enables very high interface density on switches and routers. More usable ports per rack unit translate to higher throughput per square foot, along with better power and cooling utilization in constrained facilities.

Future-Proofing

By separating switching logic from the physical medium, an SFP port lets networks adopt new optics and data rates without a platform swap. Migrations—multimode to single-mode, copper to fiber, 1G to 10/25/100G—are often as simple as changing transceivers.

Operational Insight

Modern SFP ports surface real-time health metrics from the module, such as optical power, temperature, and voltage. This telemetry enables proactive operations: teams can spot margin loss or drift early, reduce surprise failures, and resolve issues faster.

Cost Efficiency

Standardized optics keep procurement flexible and prevent single-vendor lock-in. Because capacity is added only when needed, organizations avoid overbuilding and reduce both CapEx and OpEx. The result is an architecture that balances performance, adaptability, and total cost of ownership.

What is the Purpose of SFP Port?

The primary purpose of an SFP port is to provide a modular, media-agnostic interface that decouples switching/routing silicon from the physical plant. Instead of purchasing or installing different hardware for each cable type or distance, engineers select the transceiver that matches the required medium, wavelength, and reach, then insert it into the same port.

In practical terms, SFP ports unify fiber and copper connectivity behind a single, standards-based host interface. They let teams adapt links to site realities (existing fiber, conduit limits, attenuation budgets) while keeping the core platform stable, serviceable, and easy to evolve as network capacity, distance, or optical strategy changes.

SFP vs. SFP+ vs. XFP vs. SFP28 vs. QSFP28 — What’s the Difference?

Read more：

https://www.glgnet.biz/articledetail/what-is-the-difference-between-sfp-and-qsfp.html

https://www.glgnet.biz/articledetail/what-is-the-data-rate-of-qsfp-dd.html

Conclusion

SFP ports turn physical connectivity into a configurable resource: one standards-based slot that adapts to fiber or copper, short hops or long hauls, and evolving speeds and wavelengths. By decoupling the cabling plant from the platform, they improve scalability, uptime, and cost control—while giving you the operational insight to keep links healthy.
