JLFA1S805-G/YP 1x1 Magnetic RJ45 Connector with Integrated Magnetics
JLFA1S805-G/YP 1x1 Magnetic RJ45 Connector with Integrated Magnetics

JLFA1S805-G/YP 1x1 Magnetic RJ45 Connector with Integrated Magnetics

130005-06811


A compact RJ45 connector with integrated magnetics for 10/100/1000BASE-T Ethernet applications, delivering reliable signal performance and simplified PCB integration for networking and industrial devices.


√ 1x1 Compact Design

√ Integrated Magnetics

√ 10/100/1000BASE-T Support

√ Shielded Through-Hole Mounting



*Share your specifications and application requirements to get a tailored RJ45 connector solution.


JLFA1S805-G/YP 1x1 Magnetic RJ45 Connector Overview

1x1 Magnetic RJ45 Connector with Integrated Magnetics for Reliable Ethernet Connectivity

Product Overview

JLFA1S805-G/YP is a 1x1 magnetic RJ45 connector with integrated magnetics, designed for reliable Ethernet connectivity in 10/100/1000BASE-T applications. By integrating Ethernet transformers and related magnetic components inside the RJ45 connector, it helps simplify PCB design, reduce external components, and improve overall system integration efficiency.

Designed with a shielded through-hole structure, this RJ45 connector provides stable mechanical performance and reliable signal transmission for networking and industrial applications. The compact 1x1 configuration, integrated LED indicators, and Ethernet magnetics make it suitable for devices requiring space-efficient and dependable network interfaces.

01

Integrated Magnetics Design

Built-in Ethernet magnetics help optimize PCB layout by reducing the need for separate transformer components while maintaining stable signal integrity and network performance.

02

Compact 1x1 Port Configuration

The single-port RJ45 design provides a space-saving connectivity solution for networking equipment, embedded systems, and industrial Ethernet devices with limited PCB space.

03

Reliable Ethernet Performance

Supporting 10/100/1000BASE-T applications, the connector delivers consistent data transmission performance for Gigabit Ethernet communication environments.

04

Shielded Through-Hole Construction

The robust mounting structure improves mechanical strength and soldering reliability, making it suitable for long-term operation in demanding electronic applications.

Need a Customized RJ45 Connector Solution? Share your specifications and application requirements to get technical support and a tailored connector solution from GLGNET.

JLFA1S805-G/YP Magnetic RJ45 Connector Specifications

Explore the detailed specifications of JLFA1S805-G/YP, including connector configuration, Ethernet standard, integrated magnetics, mounting type, shielding design, and key technical parameters for reliable Ethernet applications.

ParameterSpecificationParameterSpecification
ModelJLFA1S805-G/YPData RateRJ45 10/100/1000BASE-T
Part Number130005-06811PoE SupportNone
Port ConfigurationChina RJ45 1x1LED IndicatorGreen/Yellow
Number of Contacts8ShieldingShielded
Connector TypeRJ45 with Integrated MagneticsEMI Finger / GasketNone
Connector StyleSide Entry, Latch DownLength21.2 mm
Mounting TypeThrough HoleWidth15.9 mm
Height13.5 mmOperating Temperature0°C to +70°C

Need More Technical Information?

Contact GLGNET to get detailed datasheets, technical support, and a suitable RJ45 connector solution based on your application requirements.

Request Datasheet→

Quality Certification

We holds multiple international certifications, ensuring that its China RJ45 connectors and cages meet strict standards for quality, reliability, safety, and environmental compliance.Key certifications include: ISO 9001, IATF 16949, QC 080000, ROHS, REACH, UL, ELCC,etc.

IATF 16949

QC 080000

REACH

ROHS

UL

ELCC

Advantages of JLFA1S805-G/YP Magnetic RJ45 Connector

Designed for reliable Gigabit Ethernet connectivity, JLFA1S805-G/YP combines integrated magnetics, compact 1x1 configuration, shielded construction and through-hole mounting for stable signal performance and efficient PCB integration.

Integrated magnetics design for magnetic RJ45 connector
Integrated Magnetics Design
Built-in Ethernet magnetics integrate transformers and related components into the RJ45 connector, helping simplify PCB layout, reduce component count, and improve design efficiency.
Compact 1x1 magnetic RJ45 port configuration
1x1 Compact Port Configuration
The single-port RJ45 design provides a compact connectivity solution for networking devices where PCB space optimization and reliable Ethernet access are required.
Gigabit Ethernet performance magnetic RJ45 connector
Gigabit Ethernet Performance
Supporting 10/100/1000BASE-T applications, this connector delivers stable signal transmission for high-speed Ethernet communication in networking and industrial environments.
Shielded through-hole magnetic RJ45 connector
Shielded Through-Hole Structure
The shielded metal housing and through-hole mounting design provide enhanced EMI protection, mechanical stability, and reliable soldering performance.
Get a Customized Magnetic RJ45 Solution

Applications of JLFA1S805-G/YP Magnetic RJ45 Connector

Designed for reliable Ethernet connectivity in networking, industrial, and embedded electronic systems, JLFA1S805-G/YP provides a compact and stable interface solution for various communication devices.

JLFA1S805-G/YP magnetic RJ45 connector for Ethernet switches and routers

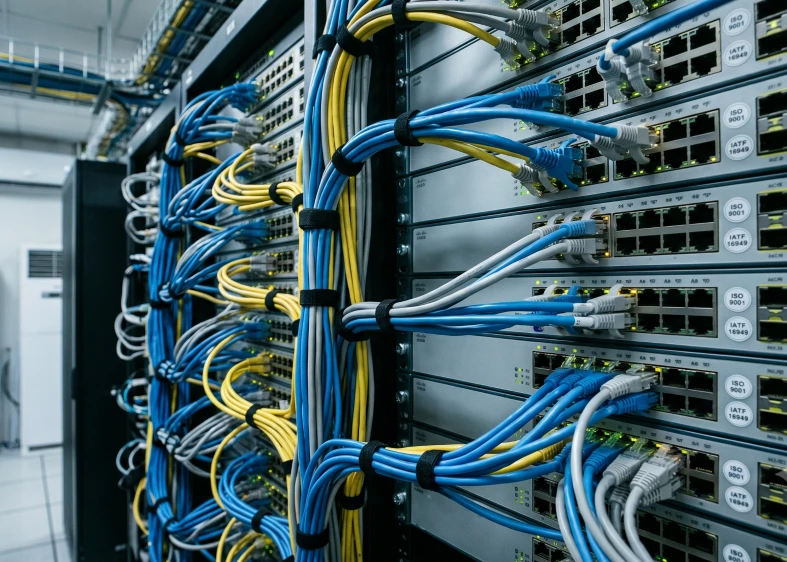

Ethernet Switches & Routers

Provides reliable Gigabit Ethernet connectivity for network infrastructure equipment requiring stable data transmission and compact PCB integration.

JLFA1S805-G/YP magnetic RJ45 connector for industrial Ethernet equipment

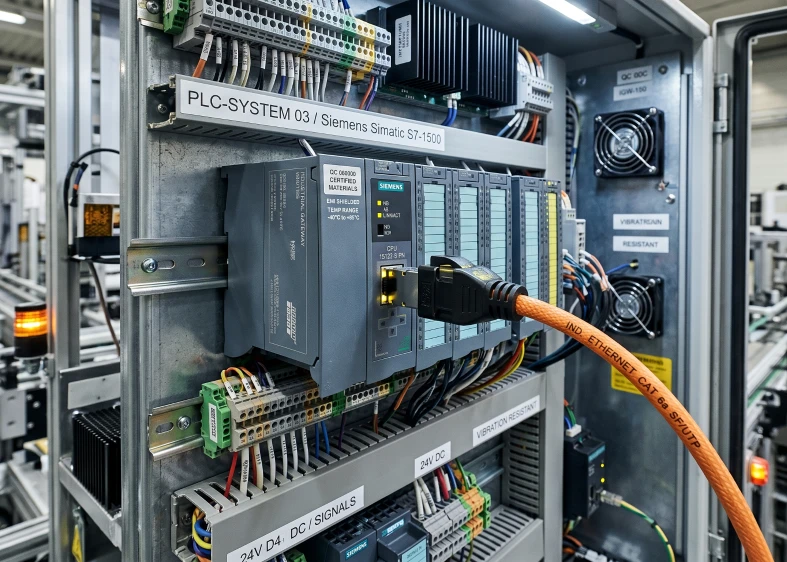

Industrial Ethernet Equipment

Suitable for industrial controllers, automation systems, and communication devices that require durable connections in demanding operating environments.

JLFA1S805-G/YP magnetic RJ45 connector for embedded networking devices

Embedded Networking Devices

Supports compact electronic designs such as gateways, access points, and embedded systems where space-efficient Ethernet interfaces are required.

JLFA1S805-G/YP magnetic RJ45 connector for communication and data equipment

Communication & Data Equipment

Used in communication devices and network terminals requiring integrated magnetics and dependable Ethernet signal performance.

Request a Quote

Custom RJ45 Connector

Custom magnetic RJ45 connector solutions covering structure, electrical performance, prototype development and OEM/ODM manufacturing support.

GLGNET custom magnetic RJ45 connector solutions.webp

Customized Magnetic RJ45 Solutions from GLGNET

As an experienced RJ45 connector manufacturer, GLGNET provides customized Ethernet connector solutions for networking, industrial, and communication applications. We support customers from product selection and design optimization to customized production, helping meet different interface requirements and application needs.

01

Customization Capabilities

Support customized connector structures, dimensions, mounting designs, and interface requirements to fit different PCB layouts and equipment designs.

02

Electrical Performance Optimization

Provide technical support for Ethernet standards, magnetics configurations, shielding requirements, and signal performance optimization.

03

OEM & ODM Manufacturing Support

From prototype samples to mass production, GLGNET provides flexible manufacturing support with quality control and reliable supply capability.

Contact GLGNET

JLFA1S805-G/YP Magnetic RJ45 Connector FAQs

Can I request samples of JLFA1S805-G/YP before placing a bulk order?

Yes. GLGNET supports sample requests for customers who need to verify connector compatibility, mechanical fit, and electrical performance before mass production. Please provide your application details and quantity requirements, and our team will assist with sample evaluation.

What information should I provide when requesting a quotation?

To provide an accurate quotation, customers are recommended to share product model, required quantity, application information, delivery requirements, and any specific technical requirements such as mounting structure, Ethernet standard, or customization needs.

Does GLGNET support OEM and ODM customization for Magnetic RJ45 Connectors?

Yes. GLGNET provides OEM and ODM services for RJ45 connectors, including structural customization, LED configuration, shielding options, and application-specific requirements. Our engineering team can support projects from design verification to mass production.

What is the MOQ for JLFA1S805-G/YP orders?

MOQ requirements may vary depending on product configuration, customization requirements, and order quantity. Contact GLGNET with your project details to receive specific MOQ and production information.

How does GLGNET ensure RJ45 connector quality and reliability?

GLGNET follows quality control procedures throughout connector production, including incoming material inspection, manufacturing process control, and finished product testing, helping ensure consistent performance and reliable supply for customer applications.

How long is the lead time for JLFA1S805-G/YP production?

Lead time depends on order quantity, product availability, customization requirements, and production schedule. GLGNET provides project evaluation and delivery planning based on customer requirements.
