If your video calls stutter, game pings spike, or large backups crawl, the culprit is often crowded airwaves—not your hardware. An rj45 connector sidesteps that problem. It’s the familiar 8-position, 8-contact (8P8C) plug that terminates twisted-pair Ethernet and ties end devices into a structured cabling system.
This article explains the rj45 connector—what it is, why it matters, and how a wired, deterministic path underpins Ethernet, device links, and PoE (and when cable beats Wi-Fi).

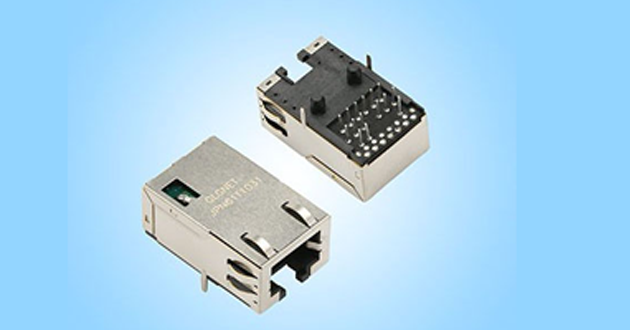

“RJ45” is the everyday label for an 8-position, 8-contact (8P8C) modular plug used on twisted-pair Ethernet cabling. It terminates copper runs at the network edge, coupling end devices to the structured cabling system. A spring latch secures the plug; precision-aligned, gold-plated contacts provide low contact resistance and repeatable performance across many mating cycles. You’ll see RJ45 ports on PCs and laptops, switches and routers, printers, NAS units, IP cameras, and VoIP handsets. Because the geometry and pinout are standardized, equipment from different vendors interconnects cleanly—no adapters, no proprietary wiring schemes.
Primary Purpose
An RJ45 jack connector’s role is to provide a deterministic, wired Ethernet path. By presenting a well-matched copper interface, it carries high-rate, full-duplex base-T signals with low latency, low jitter, and minimal retransmissions—advantages that Wi-Fi can’t always deliver in congested environments. In practice, that means faster and more predictable large file transfers and backups, steadier video conferencing, and responsive media workflows. With appropriate cabling and workmanship (e.g., Cat5e/Cat6/Cat6A, correct terminations, compliant run lengths), RJ45 links scale from legacy 10/100 Mb/s to modern multi-gigabit rates (1/2.5/5/10G).
Ethernet Networking
An rj45 jack connector terminates most copper Base-T links in a wired LAN. Because traffic rides a controlled medium instead of shared radio, latency and jitter are predictable—great for shared folders, printing, streaming, and real-time calls. Wired ports via the rj45 connector are also easier to segment and enforce with VLANs, ACLs, and NAC, so performance and security policies actually stick.
Device Connectivity
The rj45 connector ties together a broad mix of gear. Endpoints (PCs, laptops, workstations, servers) land on access switches for steady throughput; routers and ISP CPE (cable/DSL/fiber) uplink into the switching fabric; peripherals—printers, NAS boxes, and IP cameras—use the same structured cabling. Ceiling gear and VoIP handsets are especially tidy when the same rj45 connector run carries both data and power.
Data Transmission
Inside the shell, an rj45 connector presents 8 positions/8 contacts that mate to the cable’s twisted pairs for a low-resistance, repeatable interface. 10/100 Mb/s use two pairs; 1 Gb/s and above use all four, with full-duplex signaling and echo cancellation. Real-world speed and stability depend on cabling class (Cat5e/Cat6/Cat6A), workmanship (correct T568A/B, proper strain relief), EMI, and respecting the ~100 m channel limit. Get those right and you’ll see high throughput, low jitter, and few errors.
Power over Ethernet (PoE)
Pair an rj45 connector drop with a PoE switch or injector and the cable carries data + DC power (802.3af/at/bt). That trims outlets and power bricks for access points, cameras, door controllers, and desk phones, keeps ceilings clean, and lets you centralize backup via a UPS. Just mind the power budget and cable quality on longer runs.
Other Applications
Beyond Ethernet, some systems reuse the rj45 jack connector form factor for convenience—industrial controls, certain A/V transports, or serial links (RS-232/RS-485) over custom pinouts. The plug may look identical, but the signaling isn’t Ethernet; always verify pin maps and electrical specs before cross-patching between ecosystems.
Short answer: Yes. If you care about deterministic performance, an rj45 jack connector gives you a cabled path with bounded latency and sustained throughput—advantages Wi-Fi often struggles to maintain once the airwaves are busy or interference creeps in.
With an rj45 jack connector you bypass the radio layer entirely, so link rate, latency, and jitter are governed by the cable and switch—not by spectrum contention. That translates into steadier gameplay, cleaner voice/video calls, and more reliable remote desktop sessions, with fewer retries when the network is under load. The physical port also tightens your security posture: it’s easier to enforce VLAN segmentation, ACLs, and 802.1X/NAC when every device arrives on a known, managed Ethernet interface instead of a shared RF medium.
You’ll notice the biggest wins on heavy-duty endpoints—workstations, servers, and NAS appliances that move multi-gigabyte files or run scheduled backups. Creative and collaboration workflows benefit, too: video editing, live streaming, and conferencing stay smooth when bandwidth is predictable. Fixed infrastructure such as IP cameras, access points, door controllers, and VoIP phones typically performs best over Ethernet, often using PoE via the rj45 connector so the same run delivers both data and power. In small offices, a wired core gives your team repeatable performance for the applications you depend on.
If mobility is the priority—laptops and tablets that roam—or if pulling cable is impractical, Wi-Fi is the sensible trade-off. For very high speeds over distance, fiber usually wins on throughput and reach, which is why backbones above 10G are commonly optical. In harsher industrial environments, vibration, moisture, or chemicals may call for ruggedized cabling and connectors rather than a standard rj45 connector assembly.
End-to-end design sets the ceiling. Cable category and construction (Cat5e/Cat6/Cat6A; solid for permanent links, stranded for patch leads) dictate bandwidth and crosstalk limits. Termination quality matters just as much: correct T568A/B pinout, minimal untwist at the contact, and proper strain relief preserve pair balance. Keep the channel within ~100 m, avoid unnecessary couplers, and use standards-compliant patch cords. Route away from EMI sources and respect bend radius. Finally, ensure NICs and switches support what you need—Multi-Gig, auto-negotiation, adequate buffering—and if you deploy STP, maintain a consistent shielding scheme with correct grounding across the rj45 connector chain.
Most problems trace back to cabling practice rather than the rj45 connector itself. Poor crimps or a wrong pinout cause flapping links and slowdowns; terminate to spec and verify with a cable tester. Mixing UTP and STP without proper grounding negates shielding benefits; keep the chain consistent end-to-end. Overlength runs, tight bends, or tightly bundled cables degrade signal quality; reroute, shorten, or step up to fiber where appropriate. Long parallel runs next to power lines invite noise; separate pathways, use shielded cabling, or switch to optical. Avoid novelty or substandard leads—especially ultra-thin “flat” cords or CCA (copper-clad aluminum)—and replace them with compliant patch cables to restore stability.
Conclusion
The takeaway is simple: when you need predictable throughput and low, steady latency, a properly terminated rj45 connector link is still the most straightforward way to get there.
