QSFP28 Connector1x1-B0 WITH CLIP
QSFP28 Connector 1x1 Description
49002-00N011 stands out by adding a clip structure to a single-port QSFP28 connector, giving the interface a more defined retention feature than a plain 1x1 cage layout. Together with a low 9.75 mm height, the design is especially suited to applications that want a compact QSFP28 port while keeping the cage mechanically focused and easy to position within a dense panel layout.
Its press-fit mounting and EMI finger support a solder-free installation path and shielding around the cage opening, while the absence of a light pipe and heat sink keeps the structure straightforward. For designs that want a simple 1x1 QSFP28 cage with a clip-based mechanical feature instead of extra optical or thermal components, this model offers a more distinctive option.
GLGNET QSFP28 1x1 Specification
| Parameter | Specification |
|---|---|
| Model | 49002-00N011 |
| Product Name | QSFP28 1x1-B0 WITH CLIP |
| Product Type | 1x1 QSFP28 Connector Cage |
| Number of Ports | 1x1 |
| Number of Lanes | 4 Lane/Port |
| Data Rate | 28Gbps Max |
| Dimensions | 61.16 x 19.5 x 9.75 mm |
| Depth | 61.16 mm |
| Width | 19.5 mm |
| Height | 9.75 mm |
| EMI Finger | Yes |
| Light Pipe | No |
| Heat Sink | No |
| Mounting | Press Fit |
| Operating Temperature | -40°C to +85°C |
Quality Certification
Key Advantages of QSFP to RJ45 Connectivity
Built around a four-lane interface, QSFP-DD cage delivers higher aggregate bandwidth than single-lane pluggable formats and is widely used where uplink capacity, port efficiency, and dense high-speed connectivity matter most.
QSFP+ Cage Applications in High-Bandwidth Networks
QSFP+ cage is commonly used where multi-lane bandwidth is needed in a compact module format, especially in systems that rely on high-capacity uplinks, dense switching fabrics, and heavier east-west traffic.

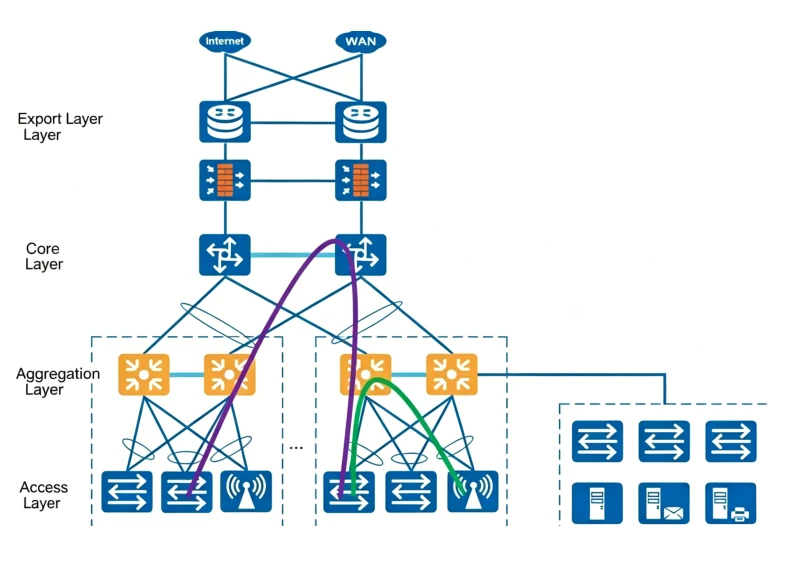

Switch Uplinks and Aggregation Links
QSFP is widely used on uplink and aggregation ports where traffic from many lower-speed access ports must be concentrated into fewer higher-bandwidth interfaces.

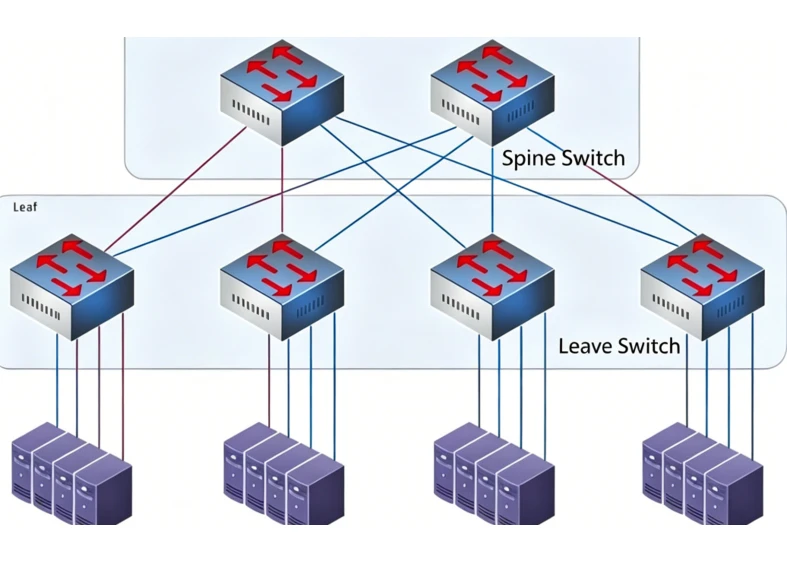

Leaf-Spine and Data Center Fabrics
In data center switching architectures, QSFP fits naturally into fabric-facing connections that require higher throughput and efficient lane-based interconnect design.

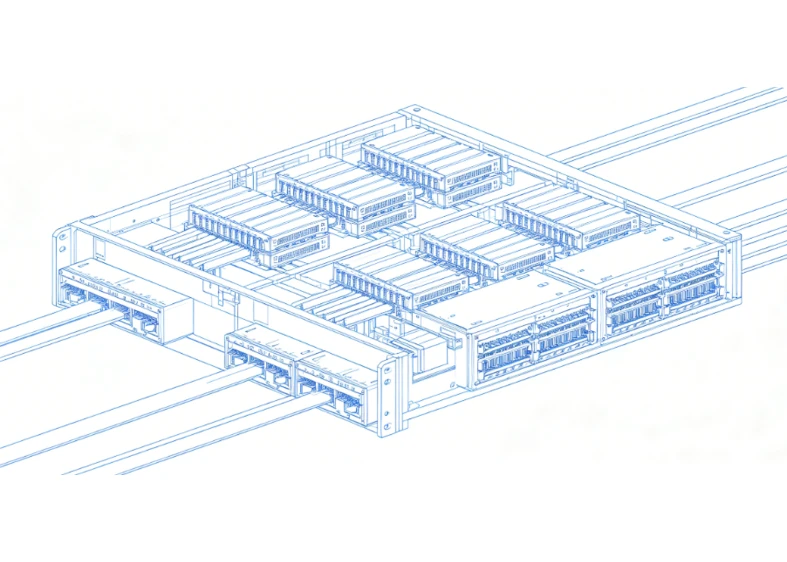

High-Performance Storage and Backend Interconnects
QSFP cage is also suitable for backend fabrics that move large data sets between storage nodes, controllers, and high-throughput equipment where wider links are preferred.

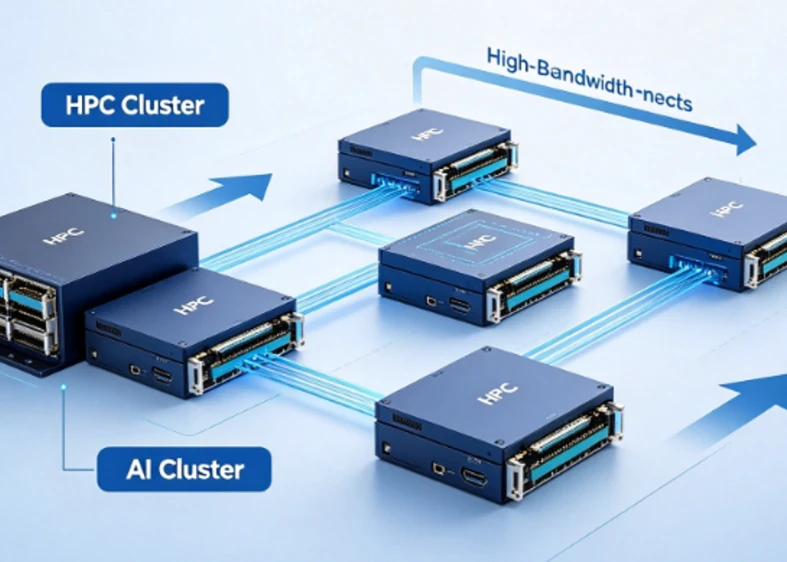

HPC, AI, and Compute Clusters
Compute-heavy platforms such as HPC and AI clusters often need denser high-bandwidth node-to-node connectivity, making QSFP a practical option for multi-lane system interconnects.
