RJ45 MagJack Design Mistakes: Top Errors to Avoid and How to Fix Them

In this article, we break down the top 7 RJ45 MagJack design mistakes that engineers frequently encounter—from choosing the wrong jack for your speed class, to ignoring grounding best practices and high-speed layout rules. More importantly, we provide practical tips and fixes to help you ensure reliability, performance, and regulatory compliance in your Ethernet design.

Learn more:

https://www.glgnet.biz/what-is-an-rj45-magjack-and-why-it-matters-in-industrial-networking

Common RJ45 MagJack Design Mistakes

Learn more：

https://www.glgnet.biz/common-problems-with-cable-damage-and-how-to-fix-them

1. Choosing the Wrong RJ45 MagJack for Your Ethernet Speed

Common Mistake:

A surprisingly common misstep in Ethernet hardware design is assuming that all RJ45 MagJacks are interchangeable in terms of speed support. Engineers may unintentionally select legacy 10/100 modules due to footprint compatibility or lower cost, without verifying if the connector meets the data rate requirements of their system. While these connectors may function at a basic level, they create a physical and electrical bottleneck when paired with Gigabit Ethernet PHYs. The result? Reduced throughput, increased latency, and performance far below system expectations.

Best Practice:

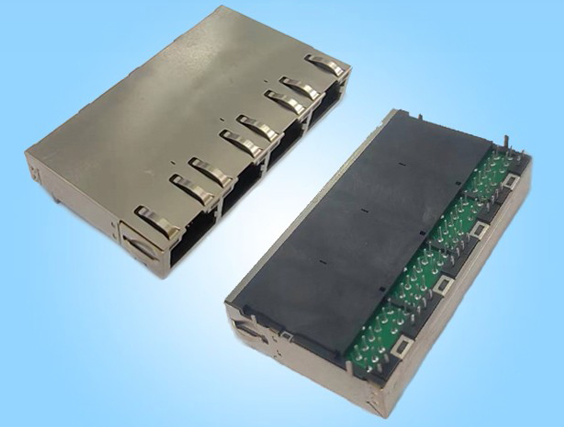

Always begin your selection process by confirming that the MagJack explicitly supports your intended Ethernet standard. For 1GbE designs, it's essential to choose RJ45 connectors that meet IEEE 802.3ab (1000BASE-T) requirements. For example, GLGNET’s JGXCA4T89K-D2/GR is a 1G magnetic integrated RJ45 jack designed specifically for such applications. This 1x4, right-angle connector features offset pins, tab-up orientation, through-hole mounting, and built-in LEDs and EMI fingers—making it ideal for space-constrained, high-speed PCB designs.

When evaluating such components, don’t just check the headline specs—take time to review the datasheet details, especially parameters like insertion loss, return loss, and crosstalk attenuation. These directly impact high-frequency signal integrity and EMI performance. GLGNET’s MagJack series is engineered with optimized magnetic circuitry tailored to each speed class, helping ensure robust, real-world Ethernet performance without relying on backward compatibility assumptions.

2. Ignoring PCB Layout Guidelines for RJ45 Magnetic Components

Common Mistake:

Even the most advanced MagJack RJ45 cannot compensate for a poorly designed PCB. Errors in signal routing—especially with differential pairs—are a frequent source of degraded Ethernet performance. Inconsistent trace lengths, non-uniform impedance, or crossing over split ground planes can lead to impedance discontinuities. These issues introduce reflections, skew, and differential-to-common-mode conversion, all of which can compromise signal integrity, particularly at higher data rates.

Best Practice:

Adopt a layout-first mindset when integrating MagJacks into your board design. Maintain tight length matching between the positive and negative traces of each differential pair—preferably within ±10 mils. Ensure controlled impedance throughout the routing path and avoid routing over gaps or splits in the reference ground plane. Use the connector manufacturer’s application notes or evaluation board layout as a baseline. Early signal integrity (SI) simulation can help catch and correct layout issues before they impact performance.

3.RJ45 MagJack Improper Grounding and Shielding Practices

Common Mistake:

Neglecting proper grounding strategies is one of the fastest ways to fail EMI compliance testing. Shielded RJ45 with magnetics are designed to reduce noise, but only if their shielding is properly terminated. Designers sometimes leave the shield floating or connect it through long, high-impedance traces, reducing its effectiveness. This not only degrades EMI performance but also increases vulnerability to ESD events at the port.

Best Practice:

Establish a low-impedance connection between the MagJack’s shield and chassis ground—ideally through a direct and short trace or stitching capacitor. Ground return paths should be wide, with minimal inductive loops. For additional ESD protection, place transient voltage suppression (TVS) diodes close to the connector pins. These practices ensure that both radiated emissions and susceptibility remain within acceptable limits during compliance testing.

4. Overlooking PoE (Power over Ethernet) Requirements

Common Mistake:

As more devices adopt Power over Ethernet (PoE), the importance of connector-level power handling is often underestimated. Standard MagJacks not designed for PoE may lack the necessary current-carrying capacity, temperature tolerance, or contact durability. Without proper consideration, this can result in voltage drops, thermal stress, or even catastrophic failure under full PoE load.

Best Practice:

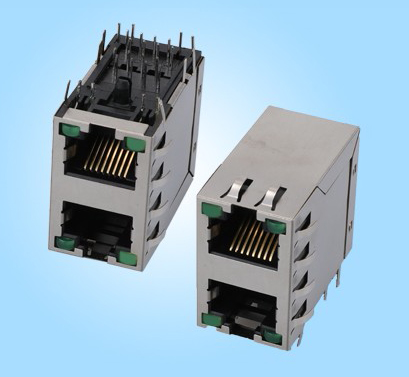

When designing for PoE applications, it's critical to ensure that the RJ45 MagJack you choose is fully rated for the power class you plan to support—whether that’s IEEE 802.3af (15.4W), 802.3at (30W), or 802.3bt (up to 90W and beyond). For high-power designs pushing up to 150W, a robust connector like GLGNET’s 45005-00XXX1 offers an excellent solution. This 2x1 RJ45 jack features shielding, built-in LEDs, and through-hole wave soldering for secure mechanical strength and superior thermal performance.

Make sure to review critical specifications such as maximum current ratings per pin, temperature rise curves, and PCB layout requirements for heat dissipation. With PoE at high wattage, well-managed thermal paths and protective circuits—like inrush current limiters or overcurrent protection—become essential for long-term reliability. GLGNET’s PoE-ready connectors are designed to meet these demands, helping engineers deliver seamless power and data over a single Ethernet line without compromising safety or performance.

5. Neglecting RJ45 MagJack Signal Integrity at High Data Rates

Common Mistake:

At transmission speeds of 1Gbps and beyond, Ethernet signals become extremely sensitive to layout and component tolerances. Overlooking details like trace impedance, via stubs, or connector insertion loss can cause eye diagram closure, excessive jitter, and communication errors. Generic RJ45 connectors without integrated magnetics or EMI suppression often fail to meet the strict SI demands of modern Ethernet.

Best Practice:

Select high-speed-rated MagJack RJ45 Connectors with built-in filtering and magnetics optimized for your target data rate. Maintain 100-ohm differential impedance across the full signal path, minimize the number of vias (or use back-drilling where needed), and reduce trace stubs. Place connectors as close as possible to the PHY to avoid added delay and parasitics. Finally, validate the performance through signal integrity tests like eye diagrams and time-domain reflectometry (TDR) before finalizing your design.

6. Failing to Validate with Real-World Testing

Common Mistake:

Digital simulations and functional checks are useful, but they don’t reveal every potential failure. Systems that pass bench tests may still experience intermittent dropouts, thermal instability, or EMI problems once deployed in real-world conditions—especially under full-speed traffic, varying cable lengths, or high ambient temperatures.

Best Practice:

Supplement simulation with rigorous physical testing. This includes eye diagram analysis to assess timing margins, insertion loss and return loss measurements to confirm impedance matching, and crosstalk validation to detect coupling between adjacent channels. Test your system with various cable lengths and types, in hot and cold environments, and under high data throughput to uncover edge-case vulnerabilities before they turn into costly field failures.

7. Ignoring Mechanical Fit and Tolerance Constraints

Common Mistake:

Electrical design often gets top priority, while mechanical integration is left to the end. However, even a perfectly working circuit can fail in production if the rj45 connector doesn’t fit properly into the enclosure or if the solder joints are mechanically stressed due to poor alignment. These issues can lead to cracked joints, port misalignment, or repeated failure during assembly.

Best Practice:

Treat mechanical fit as a core part of your design review. Use accurate 3D models of the MagJack and PCB assembly, and perform clearance checks against the enclosure early in the development cycle. Allow proper tolerances for PCB thickness, solder height, and connector travel. Conduct pilot builds or sample fit tests before finalizing mechanical tooling. Preventing physical misalignment ensures durability and simplifies high-volume assembly.

Learn more：

https://www.glgnet.biz/shielded-vs-unshielded-rj45-jack-which-one-fits-your-network

https://www.glgnet.biz/rj45-with-magnetics-vs-standard-rj45-which-one-should-you-use-in-2025

https://www.glgnet.biz/how-to-choose-the-right-rj45-connector-for-cat6A-cable

Conclusion

RJ45 MagJacks are more than just mechanical connectors—they're critical components that directly affect signal quality, EMI control, and PoE performance in Ethernet-based designs. By proactively addressing these common design pitfalls—such as improper grounding, mismatched speed ratings, or inadequate real-world validation—you can significantly improve the reliability and manufacturability of your product.
