25GB SFP28 Cage 1xN-C00
25GB SFP28 Cage 1xN-C00 Description
39063-00XXX1 is defined by a very compact SMT connector body with 20 circuits per port, 0.8 mm pitch, 8.7 mm depth, and 8.6 mm height. Rather than using a cage, heat sink, or light-pipe structure, this model keeps the interface at the connector level, making it a cleaner fit for board-side designs that need a direct and compact SFP28 cage electrical connection.
Its proportions give it a balanced compact profile: smaller than cage-based parts, but not reduced to the ultra-low height of thinner connector variants. That makes this model distinctive for applications that want a short SMT footprint while keeping a more standard connector body height for integration.
25GB SFP28 Cage 1xN-C00 Specification
| Parameter | Specification |
|---|---|
| Model | 39063-00XXX1 |
| Product Name | SFP28 1xN-C00 CONNECTOR |
| Product Type | 1x1 SFP28 SMT Connector |
| Number of Ports | 1x1 |
| Number of Lanes | 1 Lane/Port |
| Number of Circuits | 20 Circuits/Port |
| Data Rate | 28Gbps Max |
| Pitch | 0.8 mm |
| Dimensions | 8.7 x 11 x 8.6 mm |
| Depth | 8.7 mm |
| Width | 11 mm |
| Height | 8.6 mm |
| Mounting | SMT |
| Operating Temperature | -40°C to +85°C |
Quality Certification
Key Advantages of SFP28 Cage Connectivity
Built for 25G-class transmission, SFP28 cage delivers higher per-port bandwidth, better lane efficiency, and a compact interface format that fits modern data center and high-throughput equipment.
SFP28 Connector Applications in 25G Networks
SFP28 is commonly used where 25G single-lane performance is a better match than traditional 10G links, especially in platforms that need more bandwidth per port without sacrificing density.

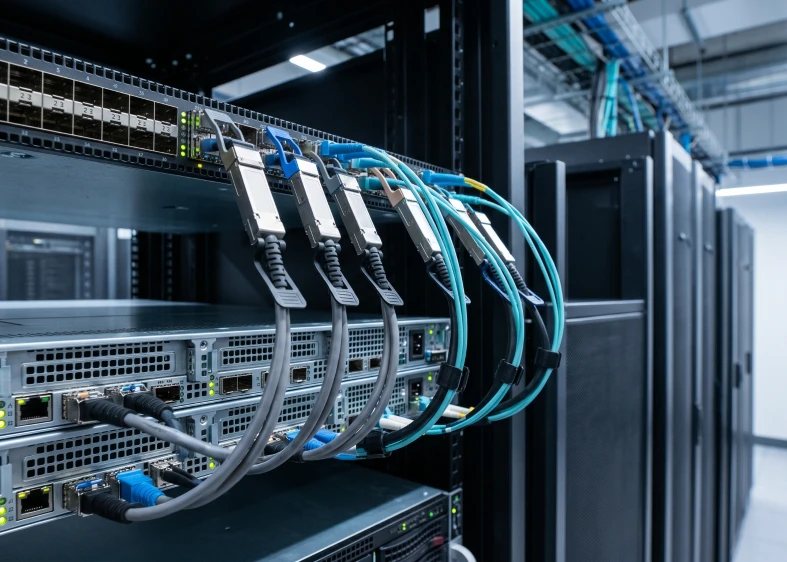

25G server-to-switch interconnects
25gb SFP28 is widely used between servers and Top-of-Rack switches in data centers where 10G access links have become a limiting factor. It provides a more suitable bandwidth level for newer server NICs and higher east-west traffic loads.
100G breakout and leaf-spine switching architectures
In many switch designs, 100G uplinks are broken out into 4 x 25G lanes. SFP28 fits this architecture well by giving server-facing and edge-facing ports a lane speed that aligns more efficiently with 100G network fabrics.

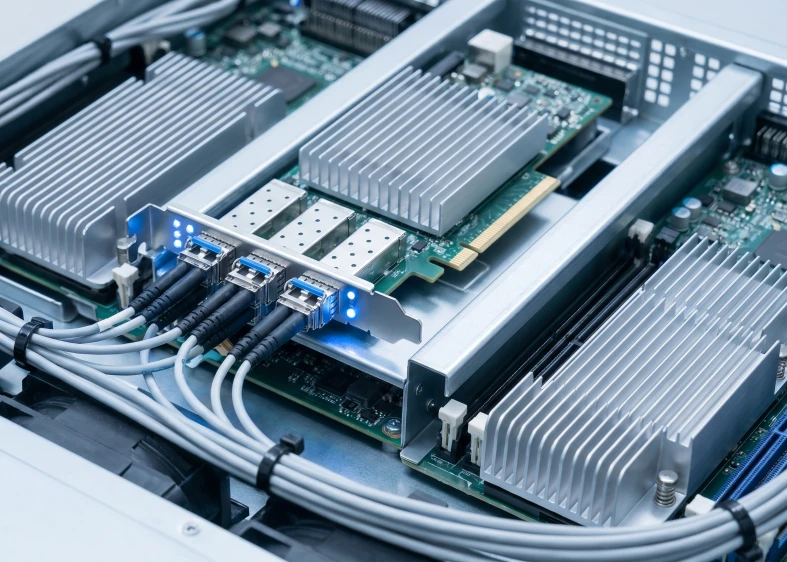

High-performance storage and NVMe-based systems
SFP28 connector is also well suited for storage platforms and backend fabrics that move large data sets continuously. The higher single-port throughput helps support faster replication, lower congestion, and better performance in bandwidth-heavy storage environments.

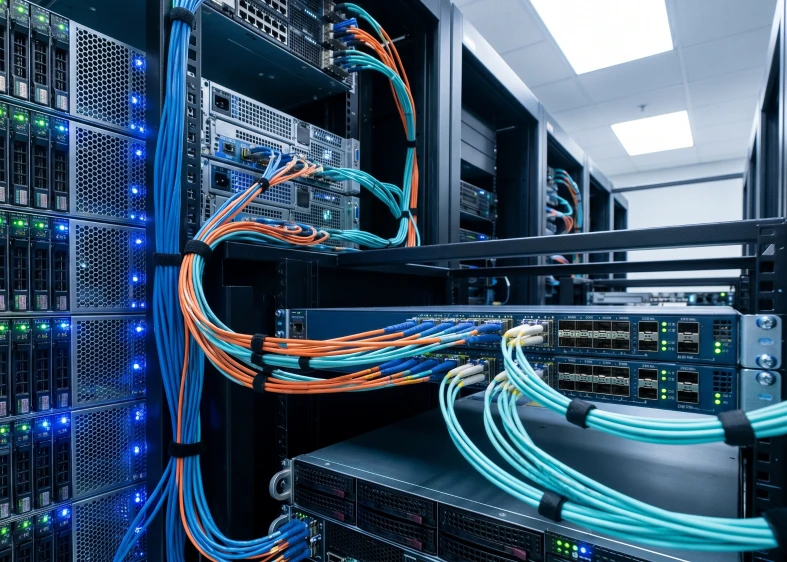

AI, HPC, and cloud computing platforms
AI clusters, high-performance computing systems, and cloud infrastructure often generate heavier traffic patterns than traditional enterprise networks. 25gb SFP28 is a stronger fit for these environments because it supports denser 25G connectivity at the server and equipment edge.
