SFP+ 1x6 Cage Elastomeric Gasket with Light Pipes
SFP+ 1x6 Cage Elastomeric Gasket with Light Pipes Description
47033-00N011 is a 1x6 SFP+ connector developed for higher front-panel port count while still providing gasket protection and integrated optical indication. With twelve light pipes across six ports, it supports clearer status display in equipment that needs to monitor multiple 10Gbps interfaces in one area.
The 1x6 format helps increase port density, and the elastomeric gasket adds a more application-focused structural feature for panel-side use. This makes the product particularly suitable for designs that need more ports, more visible status points, and a more complete front-panel interface structure.
SFP+ 1x6 Cage Elastomeric Gasket with Light Pipes Specification
| Parameter | Specification |
|---|---|
| Model | 47033-00N011 |
| Product Name | 1x6 SFP+ Elastomeric Gasket with Light Pipes |
| Product Type | SFP+ 1x6 Cage |
| Number of Ports | 1x6 |
| Number of Lanes | 1 Lane/Port |
| Data Rate | 10Gbps (MAX) |
| Depth | 54.8 mm |
| Width | 90.9 mm |
| Height | 15.09 mm |
| EMI Finger | No |
| Elastomeric Gasket | Yes |
| Light Pipe | 12 LP |
| Heat Sink | No |
| Mounting | Press Fit |
| Operating Temperature | -40°C to +85°C |
Quality Certification
Key Advantages of SFP+ RJ45 Cage
From cost-effective 10G performance to compact design and wide compatibility, SFP+ is built for efficient and reliable network connectivity.
10G SFP+ RJ45 in 10G Networks
Explore how 10g SFP+ rj45 is used in enterprise switch uplinks, server-to-switch interconnects, SAN networks, and short- to medium-distance fiber links.

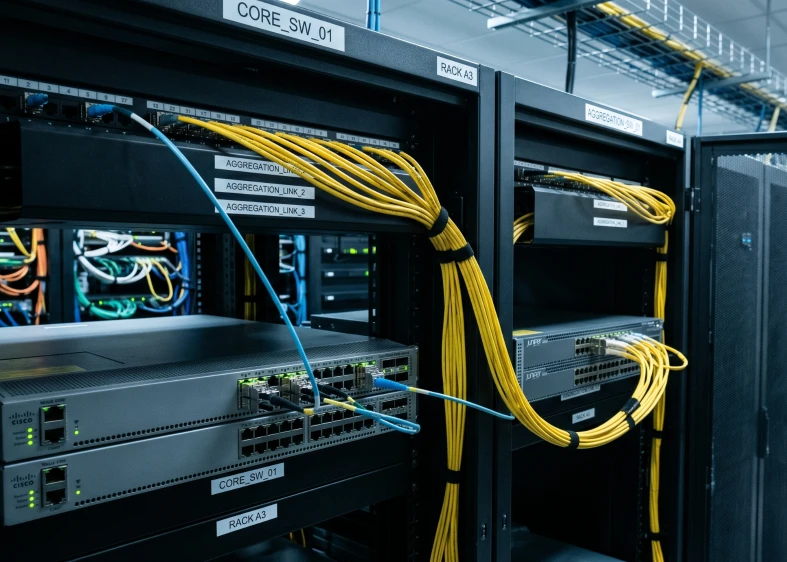

Enterprise Switches and Aggregation Links
SFP+ is widely used for 10G connections in enterprise networks, including switch uplinks, aggregation links, and core equipment interconnects. It is well suited for office networks, campus networks, and internal data transmission. As enterprise networks continue to upgrade, uplink links are often the first to face increasing bandwidth pressure, and SFP+ helps support stable aggregation and transmission performance across the network.

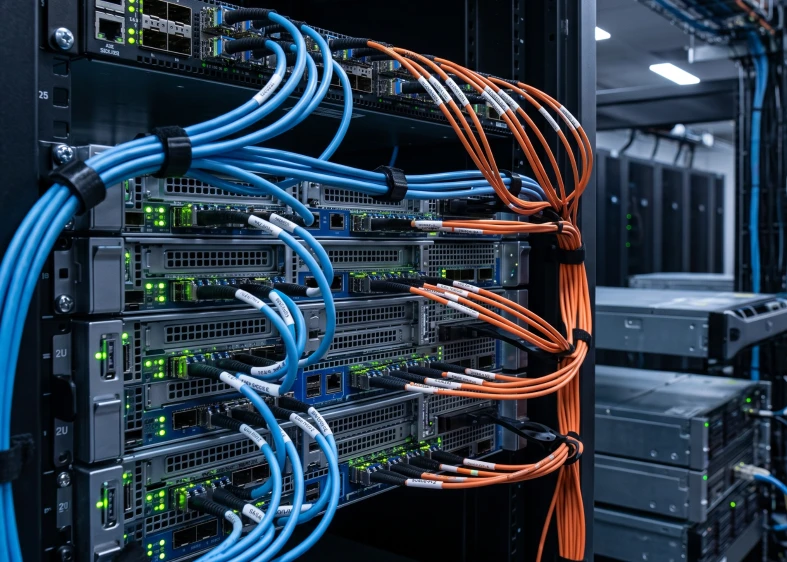

Server-to-Switch Interconnects in Data Centers
In data center environments, SFP/SFP+ cage for optic module is commonly used for 10G interconnects between servers, Top-of-Rack switches, and access switches. It is suitable for server access and in-rack network deployment. As business traffic continues to grow, these links require stronger transmission performance and connection stability, and SFP+ is well suited to support high-frequency data exchange.

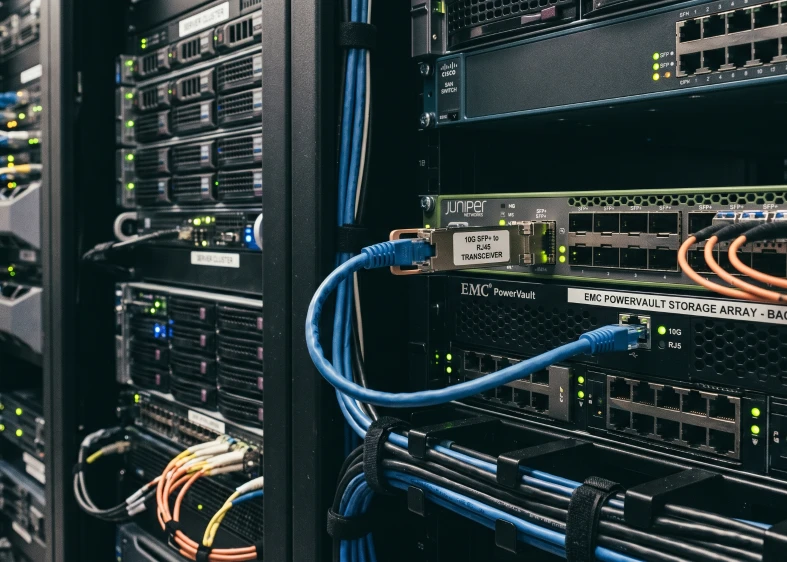

Storage Systems and SAN Networks
10g SFP+ rj45 is widely applied in storage systems, disk arrays, server clusters, and SAN networks for data exchange, device interconnection, and back-end transmission links. Since storage networks often involve continuous high-volume data transfer, they place greater demands on bandwidth, latency, and link stability, making SFP+ cage a common 10G connectivity solution in these applications.

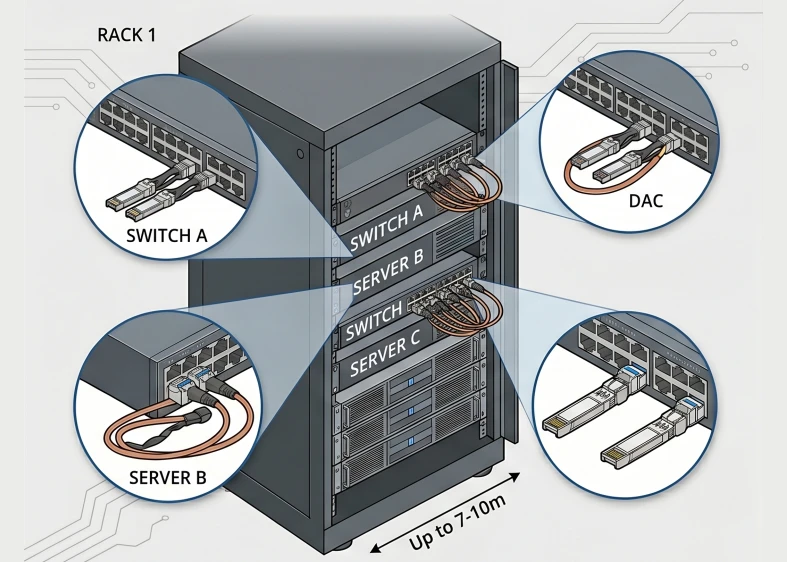

Short-Reach Rack Connections and Building/Campus Fiber Links
SFP+ connector can be used for short-distance connections between devices inside racks, as well as for short- to medium-distance fiber links within buildings and campus networks. It supports both equipment interconnection and basic optical communication deployment. For applications with different transmission distances, cabling methods, and installation conditions, SFP+ offers more flexible connectivity options.
