SFP HSIO Connector Product Center

SFP

kernel parameter：

Data Rate: 1.25 Gbps

Connector Type: LC / RJ45 (Copper)

Transmission Distance: Up to 120km (Single-mode) / 550m (Multi-mode)

Compliance: MSA Compliant, RoHS

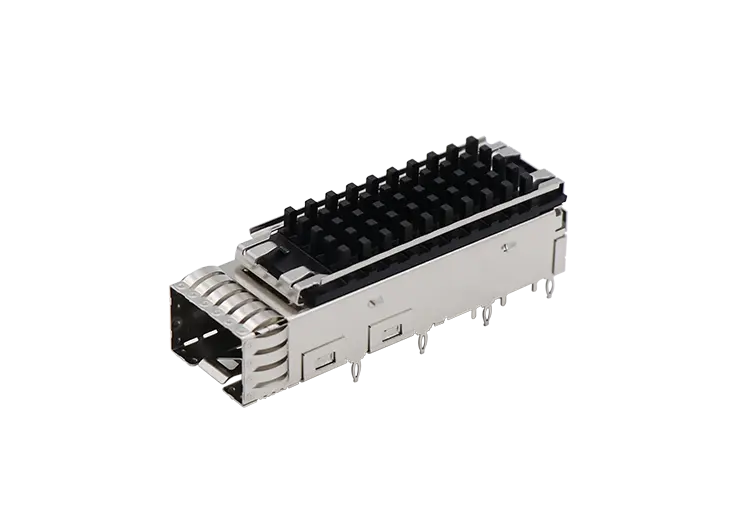

SFP+

kernel parameter：

Data Rate: 10 Gbps

Protocols: 10G/25G Ethernet, CPRI, Fibre Channel

Form Factor: Hot-pluggable SFP footprint

Operating Temp: 0°C to 70°C (Commercial) / -40°C to 85°C (Industrial)

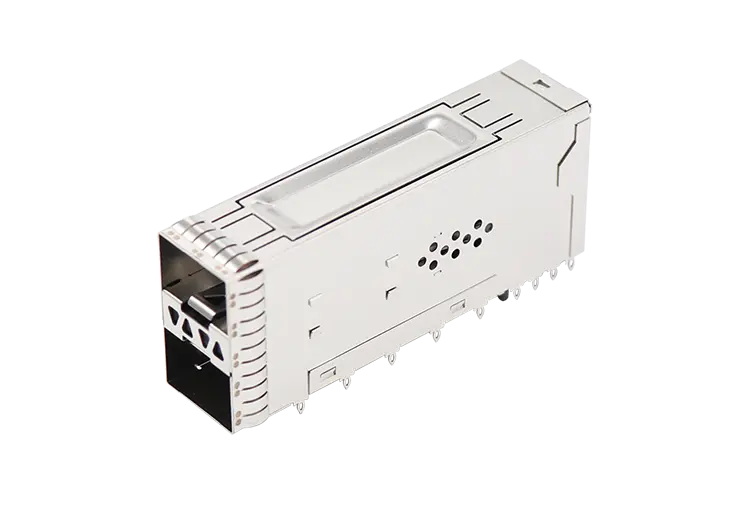

SFP28

kernel parameter：

Data Rate: 25 Gbps（NRZ）/50 Gbps（PAM4）

Protocols: 25G Ethernet, CPRI, Fibre Channel

Form Factor: Hot-pluggable SFP footprint

Operating Temp: 0°C to 70°C (Commercial) / -40°C to 85°C (Industrial)

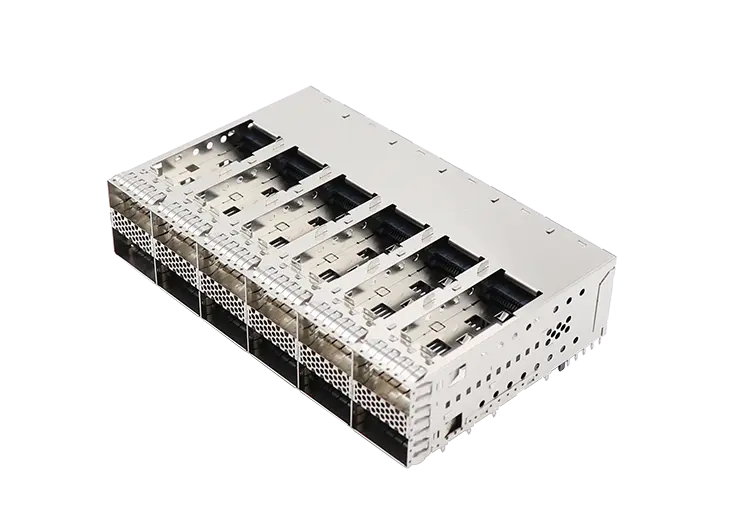

QSFP28

kernel parameter：

Data Rate: 100 Gbps (4 x 25G)

Wavelengths: 850nm (SR4), 1310nm (LR4), CWDM4

Maximum Distance: Up to 10km (LR4) / 100m (SR4)

Power Consumption: < 3.5W

QSFP112

kernel parameter：

Data Rate: 112 Gbps per channel (QSFP112)

Modulation: PAM4 (Pulse Amplitude Modulation)

Signal Integrity: Optimized for High-speed Differential Pairs

QSFP-DD

kernel parameter：

Data Rate: 400 Gbps (8 x 50G) / 800 Gbps (8 x 100G)

Power Consumption:Supporting 12W - 25W modules.

Max Distance: 10km.

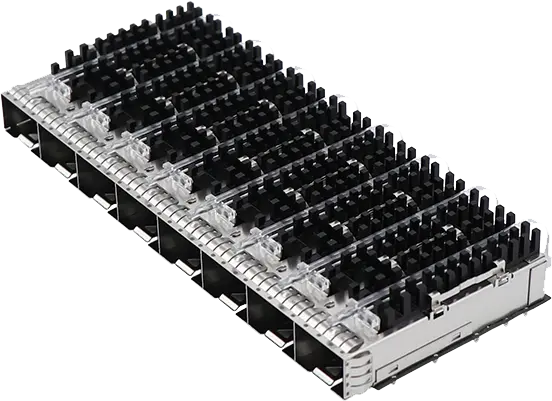

DSFP

kernel parameter：

Data Rate:100G Aggregate (DSFP)

Modulation: PAM4 (Pulse Amplitude Modulation)

Signal Integrity: Optimized for High-speed Differential Pairs

OSFP

kernel parameter：

Total Capacity: Supports 400G / 800G

Thermal Management: Integrated Heat Sink for superior cooling

Compatibility: Backward compatible with QSFP via adaptors

Find Your SFP HSIO Connector

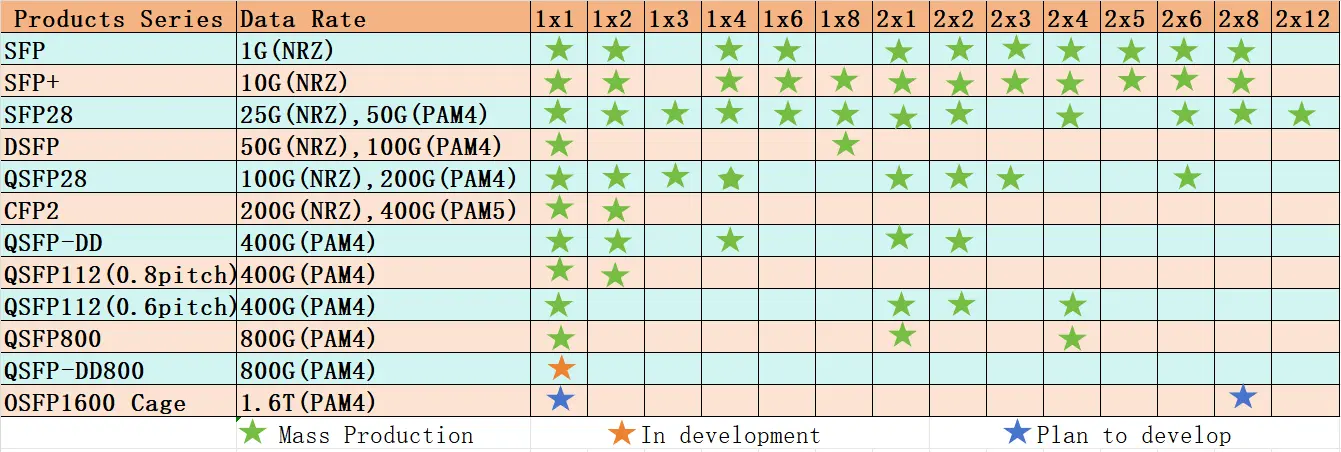

SFP Connector Specification Catalogue

-Supports OSFP 1600, OSFP 800, QSFP-DD 800, QSFP112, QSFP-DD, QSFP28, SFP28, SFP+, CFP, and XFP, with 1×N and 2×N HSIO connectors and cages configurations.

-Supports 200G, 112G, 56G, 28G, 10G, 1G per LAN data rate.

-Optional heat sinks and light pipes are available, with support for custom designs.

-All products comply with SFF or MSA specifications.

-TE & Molex authorized interface licenses.

All processes are completed in-house—a turnkey supplier with fast response.

Find Your SFP HSIO Connector

Core Advantages of SFP HSIO Connector Products

Customizable Multiple Configurations
We offer customized designs for ganged (1×N) and stacked (2×N) configurations, with optional heat sinks and light pipes. Stacked cages feature an integrated high-speed connector, and we provide turnkey services.
Higher Data Rates
SFP+/SFP28/DSFP connectors and cages support data rates up to 28 Gbps (1×) NRZ and 56 Gbps (1×) PAM-4. QSFP supports 100 Gbps Ethernet and 100 Gbps InfiniBand to meet higher-speed requirements.
Signal Integrity
Supports EMI shielding using EMI gaskets or spring fingers, helping block electromagnetic interference and ensure stable performance.
International Standards Compliance
All products comply with standards including SFF MSA, IEEE 802.3, and CEI-OIF-4.0. Mechanical, electrical, and environmental performance meets the test requirements of EIA-364 and JESD22-A104.

View SFP Highlights

Application Areas for SFP Cages and Connectors

Storage
For interconnects between storage arrays, HBAs/NICs, and storage switches, the SFP HSIO connector series provides stable, low-latency, high-speed links for storage networks.

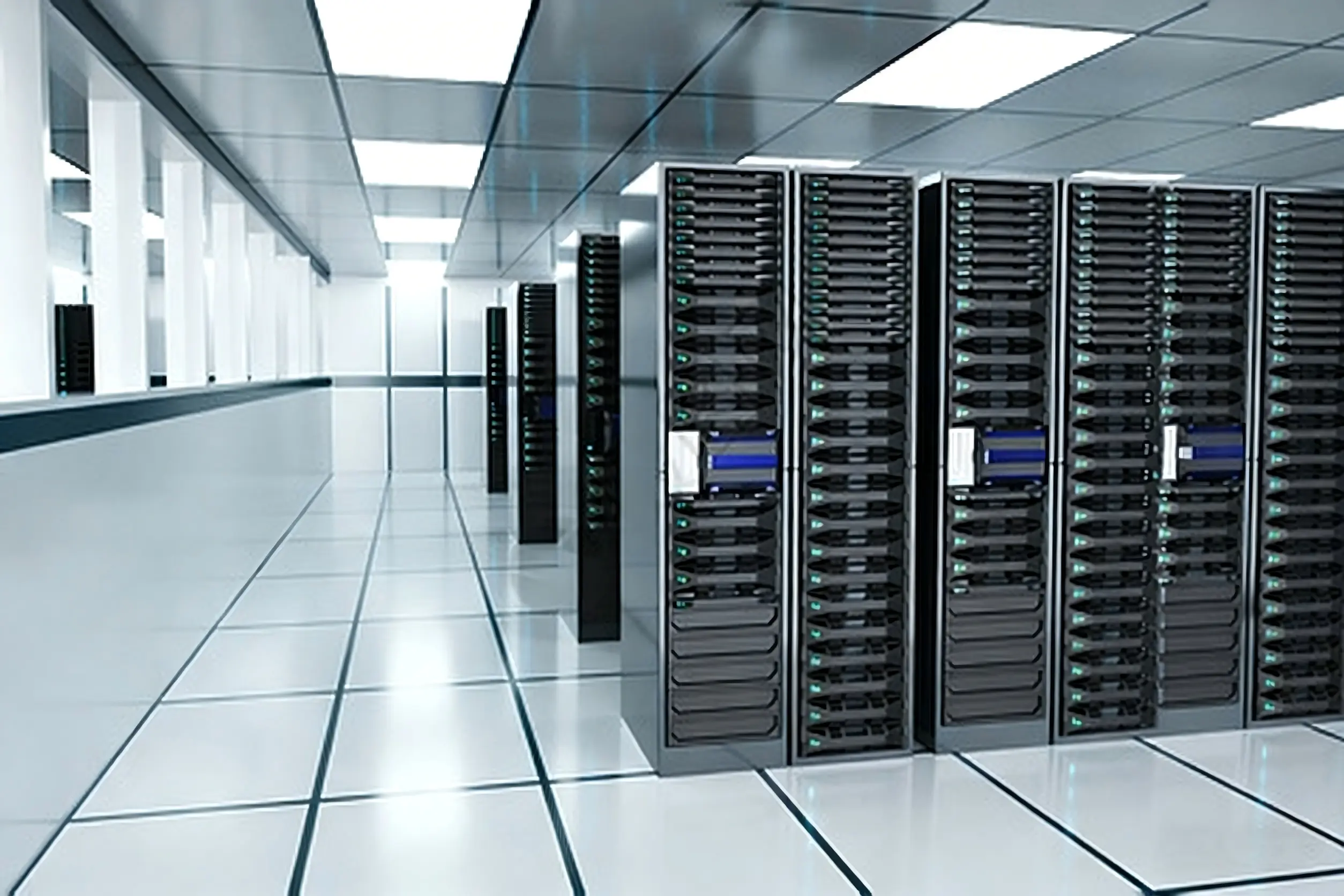

Servers
Used for server NIC uplinks and interconnects to cluster and storage networks, SFP/SFP+/SFP28 cages and connectors enable smooth bandwidth upgrades in data centers.
Routers
Pluggable modules allow fast matching of different link distances and media, reducing upgrade costs and simplifying operations, monitoring, and replacement during faults.。
Switches
Across access, aggregation, and ToR architectures, the SFP HSIO connector series enables a high-density, scalable, unified optical/electrical interface solution.

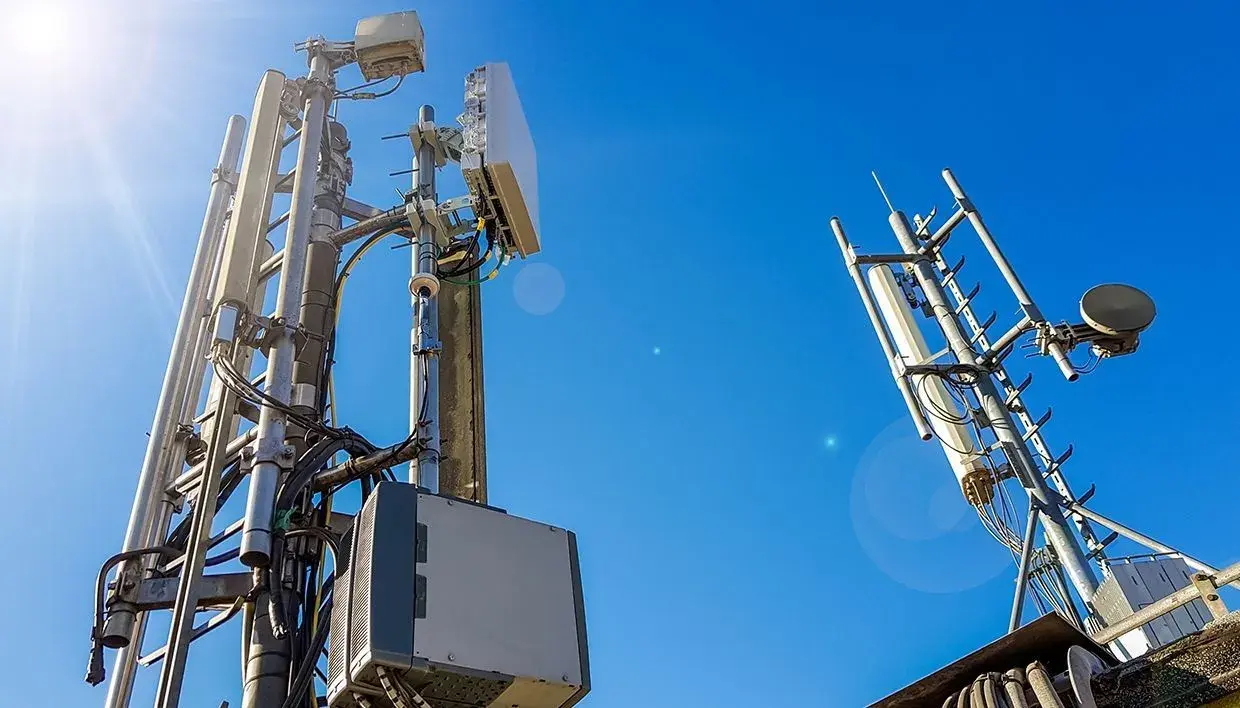

5G Base Stations
Used in site access switching, aggregation, and edge routing transport, meeting 5G backhaul and aggregation requirements for bandwidth and stability.

Submit Requirements for a Custom Solution

Why GLGNet?

Communications and Networking Connector Manufacturer

Shenzhen GLGNET Electronics Co., Ltd. was founded in 2003 and is headquartered in Songgang Street, Baoan District, Shenzhen, Guangdong Province, has set up production bases in Shenzhen, Dongguan, Huizhou, Zhejiang Changing,and Vietnam respectively. It is a national high-tech enterprise specializing in developing, manufacturing and selling Ethernet network & communication connectors. GLGNET is committed to providing customers with complete, reliable, industryleading interconnect product solutions.


GLGNET main products include:Ethernet connectors (ICM RJ45 and Normal RJ45), high-speed connectors (SFP/QSFP/OSFP/CFP series), power connectors, highspeed DAC and backplane high-speed cable assemblies, BTB connectors, Heatsink, discrete magnetics, telephone jack RJ11 series, USB&TYPE-C series, precision hardware accessories, etc. Products are widely used in Ethernet networking, communication and other industries, including 5G&4G. GLGNET also is committed to meeting market demand for connectors in new energy vehicles, high-end equipment, intelligent display, rail transit, robots and other sophisticated terminal areas.


Currently, it has established long-term strategic partnerships with worldrenowned companies: Huawei, ZTE, Ericsson, Nokia, TP-LINK, H3C, Fiberhome, etc. GLGNET has obtained IS09001, ISO14001, QC080000, OHSAS 18001, IATF 16949, EIC and other management system certifications, and the products comply with ROHS/REACH, UL and other safety certifications

1700+

Current Headcount

20%

Technical & Quality Staff: more than 20% of total headcount.

105000+

Factory floor space

R&D Strengths

Engineering and quality personnel account for 20% of the workforce.

Holds 101 patents, including 22 invention patents.

Equipped with electrical, environmental, and mechanical testing laboratories, and supported by a CAE engineering team with capabilities in SI simulation, testing, results analysis and debugging, and test board design.

Quality Control

Complies with international standards such as SFF MSA and IEEE 802.3. Mechanical, electrical, and environmental performance has passed EIA-364 and JESD22 testing.

Certified to QC080000:2017, ISO14001:2015, ISO9001:2015, ISO14064, ISO45001:2018, and UL certification, among others.

Manufacturing Capability

SFP & QSFP: 130,000 ports per month

Advanced automated assembly lines significantly improve efficiency while maintaining high quality.

Four major manufacturing sites—Shenzhen, Huizhou, Vietnam, and Dongguan—with a total facility area of about 100,000 m² and a workforce of 1,700+ employees.

Our Customers

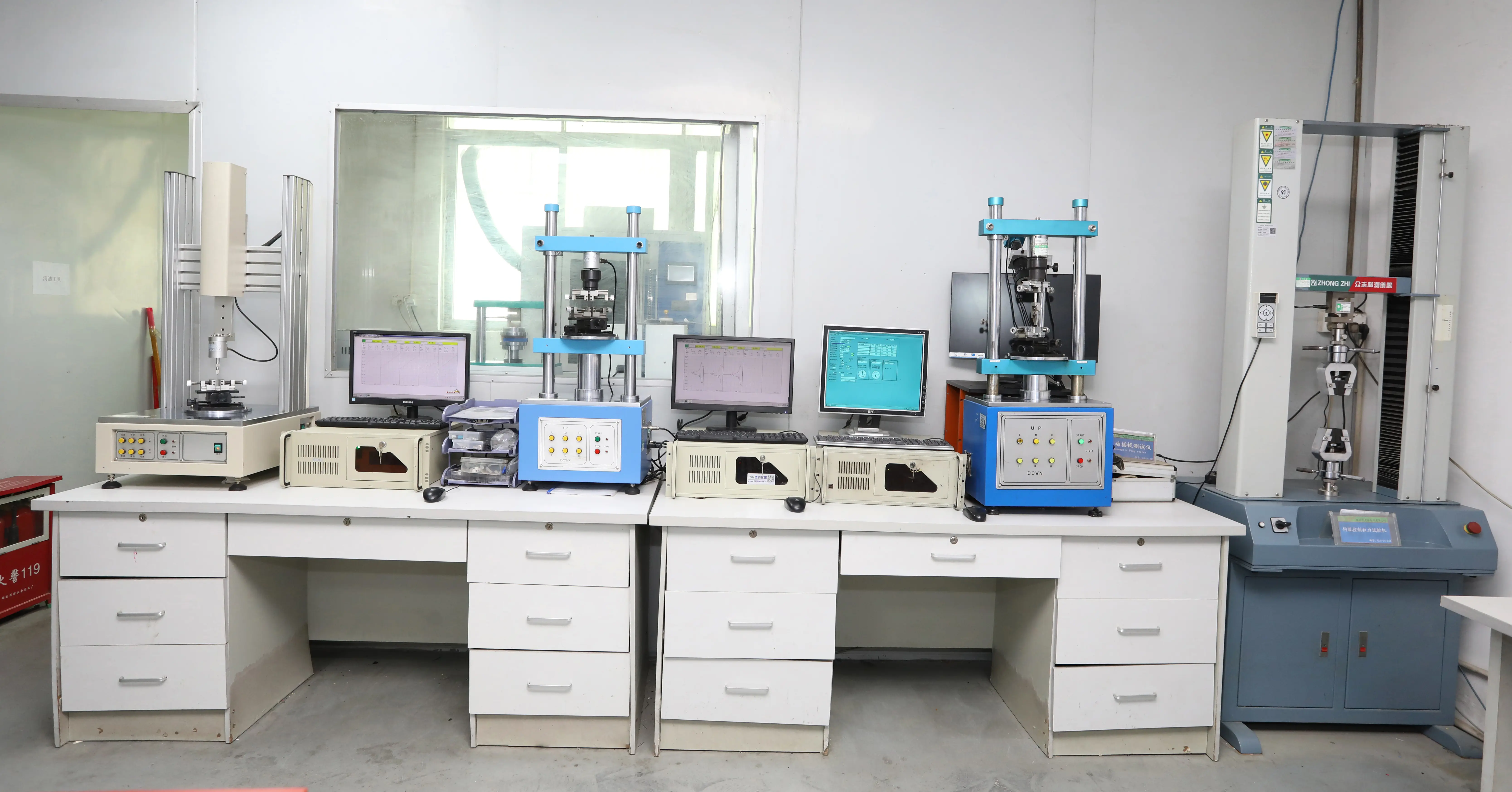

R&D & Production Workshops

Download Company Profile

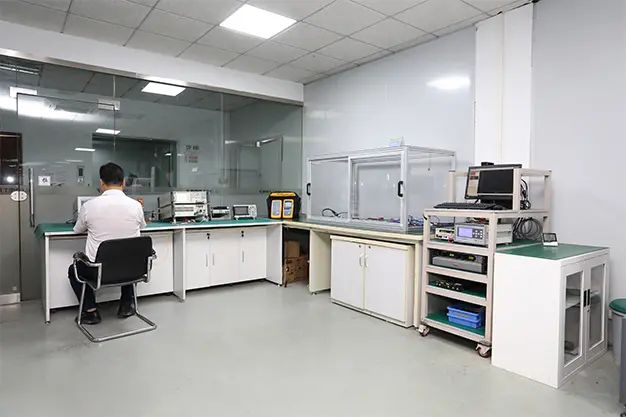

Network Analyzer （67G）

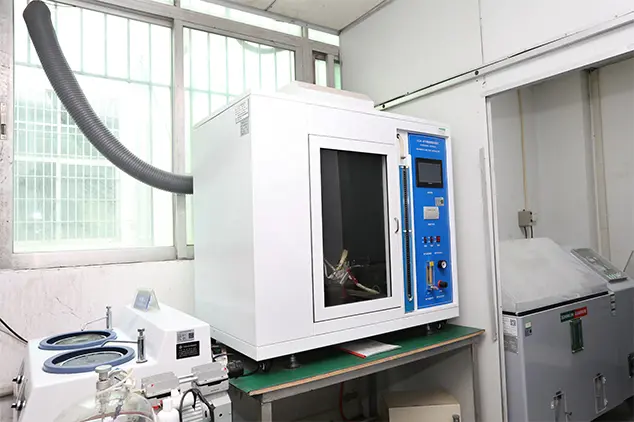

RoHS Tester

Horizontal Measuring Projector

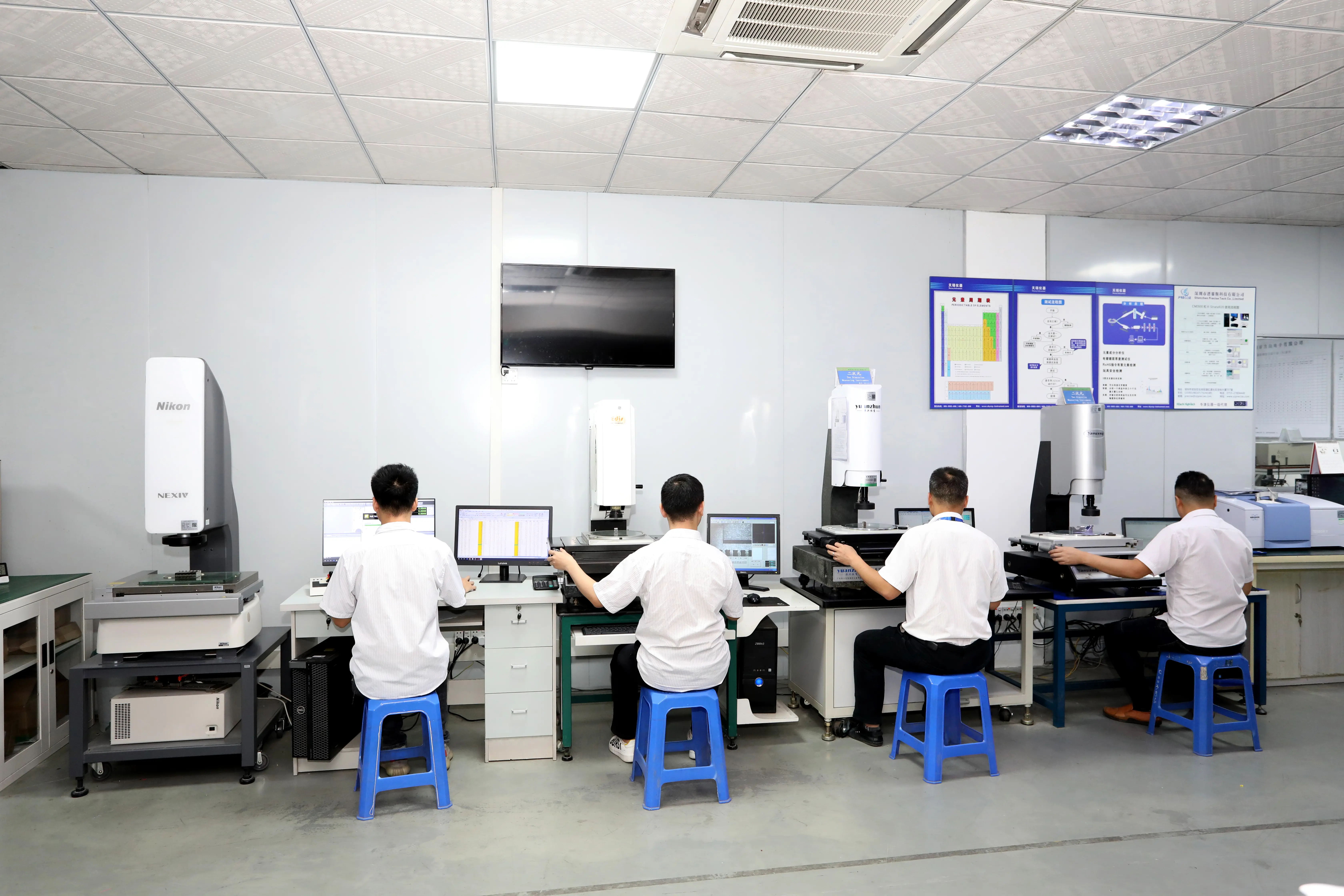

2D Measurement Instrument

FAQs

What is SFP connector?

SFP is a compact, hot-pluggable network interface used to connect network switches with other devices for data transmission. The products support single-lane data rates from 100 Mbps to 224 Gbps. Based on mechanical structure, they are available in single-level and dual-level designs: Single-level / 1×N: includes a shielding cage and connector. Dual-level / 2×N: the shielding cage and connector can be integrated or separated.

What are the application areas for SFP connector products?

Key application areas for SFP HSIO connectors include: Cloud computing equipment: such as data-center storage systems, servers, routers, and switches. Telecom networks: telecom operators and equipment manufacturers, including scenarios such as 5G base stations.

What is the manufacturing process for SFP products?

The manufacturing process for SFP connectors covers product design, simulation and validation, mold design and fabrication, injection molding, stamping, plating, heat-sink manufacturing, and final assembly and testing. All processes are completed within GLGNET, supported by in-house developed automated assembly and test equipment. This integrated manufacturing model ensures strong competitive advantages in product quality, lead time, and cost control.

SFP cages selection recommendations and application processes?

Press-fit: recommended for convenient maintenance and stable quality. Soldering: suitable for high-performance requirements, but with higher material and process costs.

What standards do SFP HSIO connector products comply with, and what are the key specifications?

Complies with standards such as SFF MSA, IEEE 802.3, and CEI-OIF-4.0. Mechanical, electrical, and environmental performance meets the test requirements of EIA-364 and JESD22-A104.
Key specifications:
Hipot (withstand voltage): 300 VDC, 60 s
S-parameters: Insertion Loss / Return Loss / Crosstalk / Mode Conversion
Mating cycles: ≥ 100 cycles
Operating temperature: -40 to +85°C
