In this article, we’ll explore whether female RJ45 connectors can safely support PoE, how to identify the right ones, and what makes GLGNET components a reliable choice.
Need help selecting the right RJ45 connector for Cat6A cable? Read our expert guide here.
https://www.glgnet.biz/articledetail/how-to-choose-the-right-rj45-connector-for-cat6A-cable.html
A female RJ45 connector acts as the socket component in an Ethernet system, providing the interface into which a male RJ45 plug—often referred to as a crystal head—is inserted. It facilitates both physical contact and electrical signal transmission using an 8P8C (8-position, 8-contact) pin layout, which has become the standardized configuration for Ethernet communication.
Curious how an RJ45 female connector is made? Explore the step-by-step process here.
https://www.glgnet.biz/articledetail/how-to-make-rj45-female-connector.html

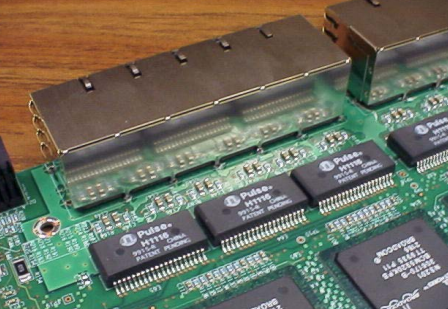

These connectors are available in a variety of structural designs to support different application environments. For instance, board-mounted (PCB) connectors are commonly embedded directly into electronic hardware, offering a compact footprint and straightforward routing. On the other hand, panel-mount versions are typically used in enclosures or chassis where durable external access is required. Some configurations, like inline couplers, are specifically intended for linking two Ethernet cables together—useful for quick installations or temporary network extensions without the need for re-termination.
Due to their standardized design and broad compatibility, female RJ45 connectors are widely deployed across numerous electronic and networking systems. They're a staple in network switches, routers, and access devices, where they form the foundation for wired Ethernet connections. In industrial and automation environments, they serve as a communication interface between field devices and control units like PLCs. These connectors are also commonly built into structured cabling systems, such as wall outlets, enabling clean and organized cable terminations in residential, commercial, and enterprise settings.

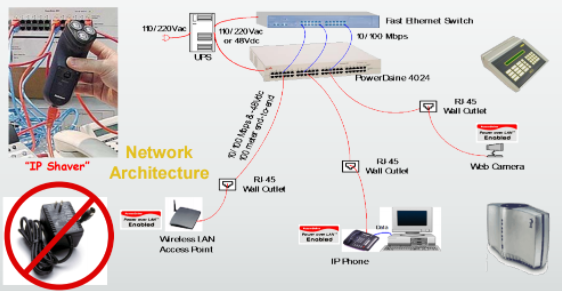

Beyond traditional networking, compact versions of female RJ45 connectors are extensively used in IoT modules and embedded Ethernet applications, where space constraints and reliable performance are critical. In Power over Ethernet (PoE) setups—including IP surveillance cameras, access control systems, and wireless access points—these connectors play a dual role by transmitting both power and data through a single cable, simplifying deployment and minimizing cabling infrastructure.
The short answer is: not all female RJ45 connectors are suitable for Power over Ethernet (PoE). While most RJ45 connectors are capable of handling standard Ethernet data transmission, only specifically designed models can reliably support both data and DC power over the same connection—as required in PoE implementations.
Power delivery through Ethernet adds a new layer of demands on the connector's electrical and thermal properties, as well as the durability of materials used in construction. Using a standard connector not built for PoE can result in premature degradation, unstable performance, or even component failure.
PoE technologies—especially PoE+ (IEEE 802.3at, up to 30W) and PoE++ (IEEE 802.3bt, up to 90W)—involve significantly higher current loads than traditional Ethernet applications. These increased current levels generate more heat at the contact points and demand greater physical robustness.
Improperly rated connector rj45 females may encounter:
Heat buildup during prolonged high-power operation
Arcing when cables are inserted or removed under load
Accelerated wear on contact surfaces not designed for power conduction
Such stresses can compromise both signal integrity and long-term reliability, especially in industrial or mission-critical environments.
To help clarify the differences, here's a summary comparing key aspects of PoE-ready connectors with generic versions:
|
Feature |
PoE-Compatible Female RJ45 |
Standard Female RJ45 |
|
Gold plating thickness |
30µin (microinches) or more |
Often 6µin or less |
|
Contact material |
High-conductivity alloy with enhanced durability |
Standard copper alloy |
|
Thermoplastic rating |
High-temperature resistant (UL94 V-0) |
May soften under high current |
|
Current capacity |
≥1.5A per contact pair |
Typically <1.0A |
|
PoE standard support |
IEEE 802.3af / at / bt |
None or not guaranteed |
As seen in the table, PoE-capable RJ45 connectors integrate multiple design improvements to ensure safe and efficient operation under power load. These enhancements help to reduce contact resistance, improve heat dissipation, and extend the connector’s life cycle.
In summary, when designing or upgrading a PoE system, it's crucial to choose female RJ45 connectors that explicitly support PoE loads. This ensures not only functional performance but also long-term reliability and device protection. Generic connectors, while suitable for standard data transmission, may not offer the electrical robustness or thermal stability required for modern high-power Ethernet environments.
Choosing a female RJ45 connector that can reliably support Power over Ethernet (PoE) requires more than matching dimensions or mounting style. For engineers and system integrators, ensuring electrical safety, thermal stability, and compliance with performance standards is essential—especially as PoE moves beyond basic 15W delivery to higher-power applications like PoE+ and PoE++.
A key specification to assess is the rated current per contact. For PoE-enabled systems, a dependable connector should typically support at least 1.5 amps per signal pair to safely carry both power and data. Equally important are the operating temperature limits and insulation characteristics, as elevated power levels can result in continuous heat exposure and require robust dielectric strength to prevent breakdown.

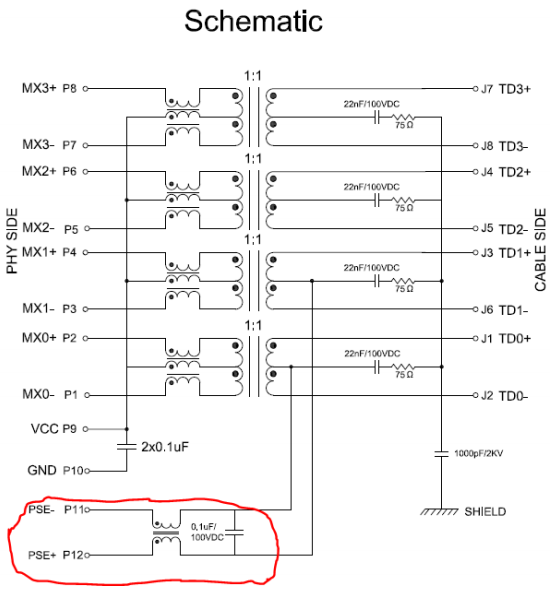

For space-constrained or high-efficiency designs, many engineers opt for magnetically integrated RJ45 female to female connector, commonly referred to as ICMs (Integrated Connector Modules). These compact components combine Ethernet transformers, common-mode chokes, and often diagnostic LEDs into a single assembly. This integration not only conserves board space but also enhances electromagnetic interference (EMI) filtering and galvanic isolation—both critical for PoE signal integrity.
It’s also vital to confirm that the rj45 female connector meets recognized standards. Products that comply with IEEE 802.3af/at/bt, carry a UL 94V-0 flammability rating, and are certified under RoHS and REACH directives are more likely to deliver long-term reliability in professional and industrial-grade deployments. Choosing connectors without these validations increases the risk of thermal failure, data loss, or even equipment damage.
When designing a Power over Ethernet (PoE) system, the rj45 female to female connector is not just a mechanical interface—it's a critical part of the power and data path. Choosing the right female RJ45 connector can significantly affect system stability, thermal performance, and compliance with industry standards.
If your design integrates Power over Ethernet, especially at higher power classes, opting for a magnetically integrated RJ45 (ICM) simplifies the PCB layout and enhances signal integrity.
That’s where GLGNET comes in. As a trusted connector manufacturer, GLGNET offers a full range of female RJ45 modular jack connectors engineered for PoE applications. Our solutions include:
CAT5e-compliant designs supporting up to Gigabit Ethernet
Over 750 mating cycles for long-term reliability
Options with integrated magnetics, LED indicators, and PoE+ compatibility
Compact PCB-mount and panel-mount versions for flexible integration
GLGNET: Your Go-To Source for Reliable RJ45 Jacks
Whether you're building a smart IP camera, a rugged industrial switch, or an embedded networking device, GLGNET’s high-performance RJ45 connectors help ensure stable power delivery and clean data transmission—all in one compact, durable component.
Learn more:
https://www.glgnet.biz/articledetail/how-to-choose-the-right-rj45-connector-for-cat6A-cable.html
Conclusion
As Power over Ethernet continues to expand across industries—from smart surveillance to industrial automation—the importance of selecting the right female RJ45 connector cannot be overstated. Not all connectors are built to handle the combined electrical, thermal, and mechanical stresses of PoE, especially at higher power levels like PoE+ and PoE++.
Trust GLGNET to power your network—one reliable connection at a time.
